Why Access Control System?

Today, Security has become a major concern across the globe as a result of many anti-social activities and terrorist attack. Organizations face many security challenges at their facilities. Managing the access of authorized personnel into a facility is a major concern. Organizations need to secure their facility from unauthorized person.

What is does?

An access control system (ACS) is a type of security that manages and controls who or what is allowed entrance to a system, When is allowed and Where is allowed at environment or facility.

It identifies entities that have access to a controlled device or facility based on the validity of their credentials like Biometric or RFID or PIN.

Typical Layout of Multi Door Access Control System is as per below.

HID-Master controller interfacing to VertX V100, V200, and V300 door and IO interface devices
The VertX EVO™ V1000 is a networked access controller with a multi-door access control panel. It reduces the burden on corporate Local Area Networks (LANs) by connecting up to 32 door controllers using only one IP address.
The high-performance platform increases door uptime while the master controller minimizes corporate LAN overhead by providing access control decisions for up to 64 readers.
VertX EVO V1000 makes all online door decisions, input monitoring and output control for all connected interface modules, including VertX® V100 (door interface), V200 (input monitor), and V300 (output control).
Mounting: Mount to any wall surface, using four screws. For UL compliance, one or more gateways can be mounted inside a locking customer supplied NEMA-4 rated enclosure
Dimensions: 5.8″ W x 4.825″ H x 1.275″ D (147.32 mm x 122.55 mm x 32.38 mm)
Weight: 12.4 oz (.35 kg)
Operating Temperature: 32° to 122° F (0° to 50° C)
Operating Humidity: 5% to 95% relative, non-condensing
Communication Ports: Ethernet (10/100), RS485 (half-duplex)

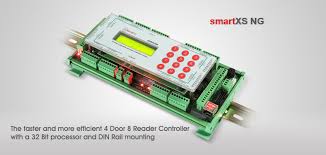

SMART I- The faster and more efficient 4 Door 8 Reader Controller with a 32 Bit processor and DIN Rail Mounting

Key Features & Benefits

The Processor:- Its 32-bit processor makes smartXS NG a much faster and more efficient controller in all its functions than any other controller in its category and, along with the following advantages, much more cost effective too.

CCTV Integration with Access Events:- Alarm Management Software Module for security audit or to verify/identify tailgating, made effective by Alert based network protocol implemented in smartXS NG.

Door Interlocking:- smartXS NG has inbuilt configurable door interlocking facility so that if one door is open, some or all of the other three will remain closed. The Logic can be defined by the user on-site through the controller Keypad.

DIN Rail mounting option:- Available in more compact and attractive with standard DIN Rail mounting, besides the conventional panel enclosure.
Technical Specifications

Rosslare Advanced Scalable Networked Access Controller

AC-825IP access control unit (ACU) supports up to 4 doors (In/Out) via Wiegand protocol and 2 doors via OSDP, each with 2 inputs and 1 output. Four additional auxiliary inputs and 2 auxiliary outputs are also on board. The AC-825IP includes AES128-bit encrypted communication via TCP/IP to an AxTraxNG server, and has an additional RS-485 bus for expansion connectivity.

MAIN FEATURES:

Up to 58 doors, 60,000 users, and 500,000 history log entries (FIFO) per ACU
Onboard TCP/IP networking with AES 128-bit data encryption to an AxTraxNG server, bidirectional push communication for enhanced data transmission speed and reliability
Supports up to 6 doors (Wiegand format/OSDP readers), each with 2 inputs and 1 output.
4 auxiliary inputs and 2 auxiliary outputs
Supports 2 OSDP readers
One onboard expansion slot and an additional 12 expansion boards via OSDP (R/S/D/P-805)*
R-805 – 16 outputs
S-805 – 16 inputs
D-805 – 4-door expansion
P-805 – 16 inputs and 8 outputs
An additional ME-1505 metal enclosure holds 2 expansion boards and includes all the innovative features of the AC-825IP enclosure
Real-time clock keeps time for up to 2 weeks without power (no batteries to replace)
Spacious and lockable metal enclosure, features cable twist locks and zip-tie anchors for better cable management
Power management board indicates battery and power status
Revolutionary enclosure with: illumination bar that lights up when enclosure is opened; tamper sensing; and power status LED
